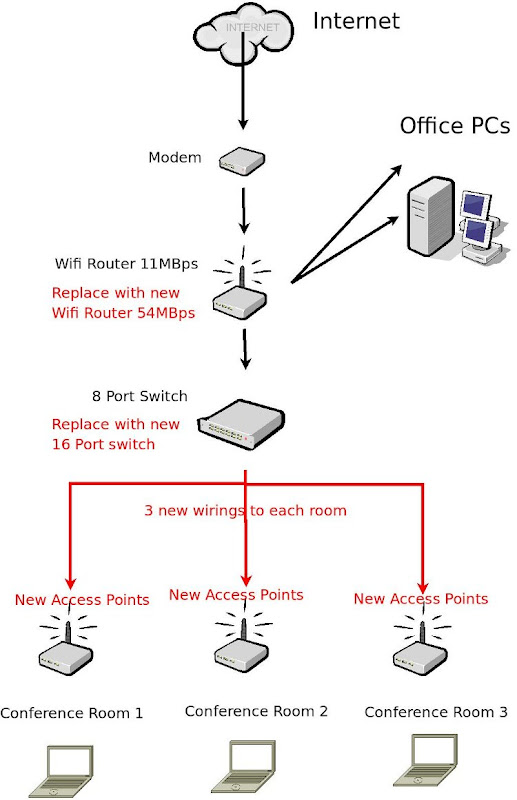

What if your wireless signal is weak, and you wish to expand the signal range across other rooms in the premise, this is when an access point will come in handy. A high end wireless router with a "n range" with 3 antennas is considered suffice for small office (SOHO) and  everage home users, but it wont be enough if you wish to share the bandwith across 100 users. This is why we proposed our client to settle with an AP for each training room in his office. Shown below is a layout of what we'll be implementing soon for our client.

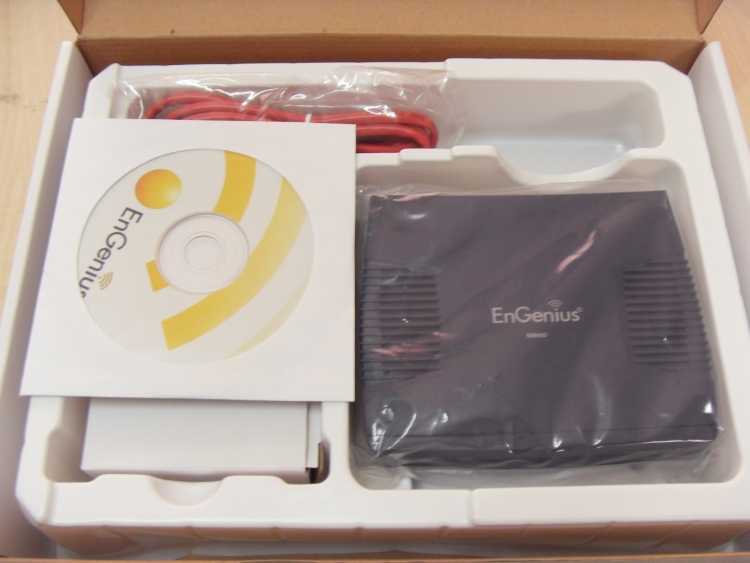

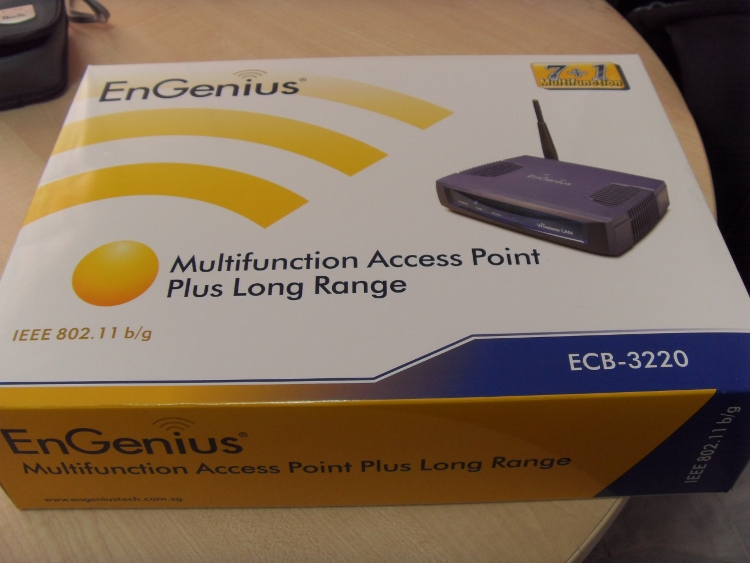

Besides the AP, we need to replace the existing router with a 54MBps linksys router, and also the switch to accomodate more LAN points in this a 16 port would be enough. As for the AP we are using an Enginius Multifunction Access Point which is widely used for commercial & industrial businesses.

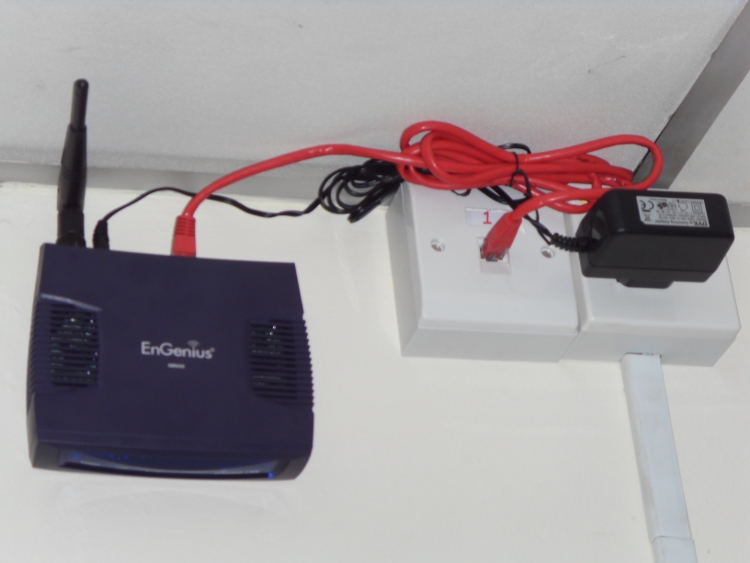

The APs are mounted on the wall to ensure it receives the optimum signal transmitted by the wireless router

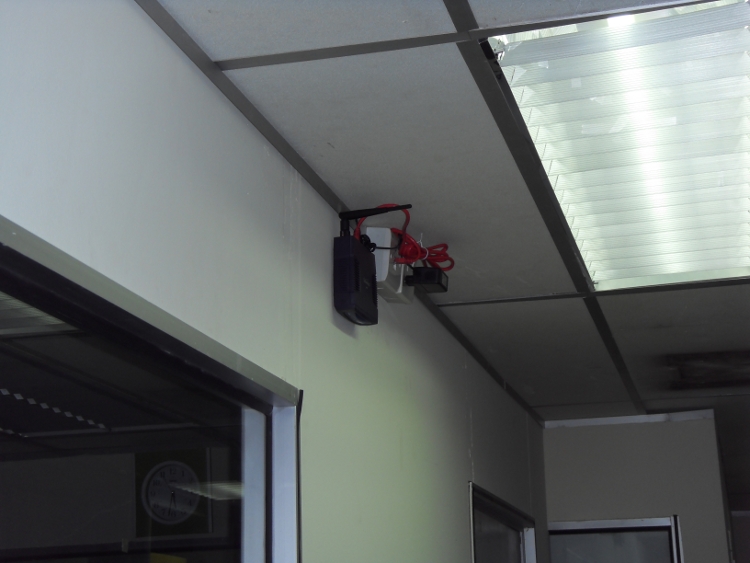

The AP's are mounted at different locations mainly room 1, 2 & 3

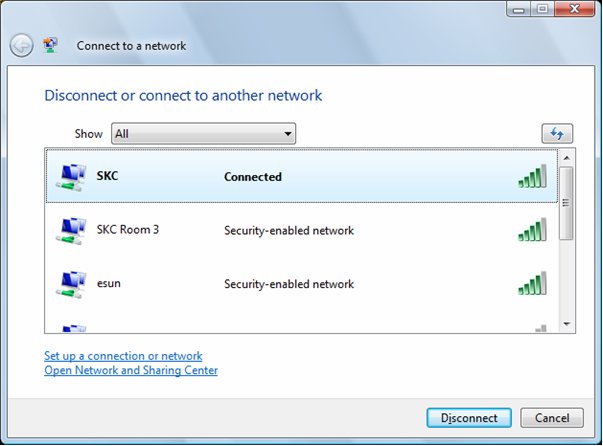

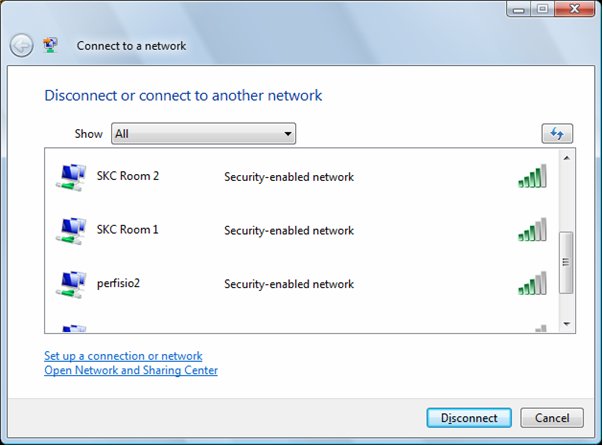

As you can see the signal strength for each room in SKC is exceptionally good, the students can access any network which is close to their location.

Concluding this post here is a short clip on how we installed an access point (AP).
